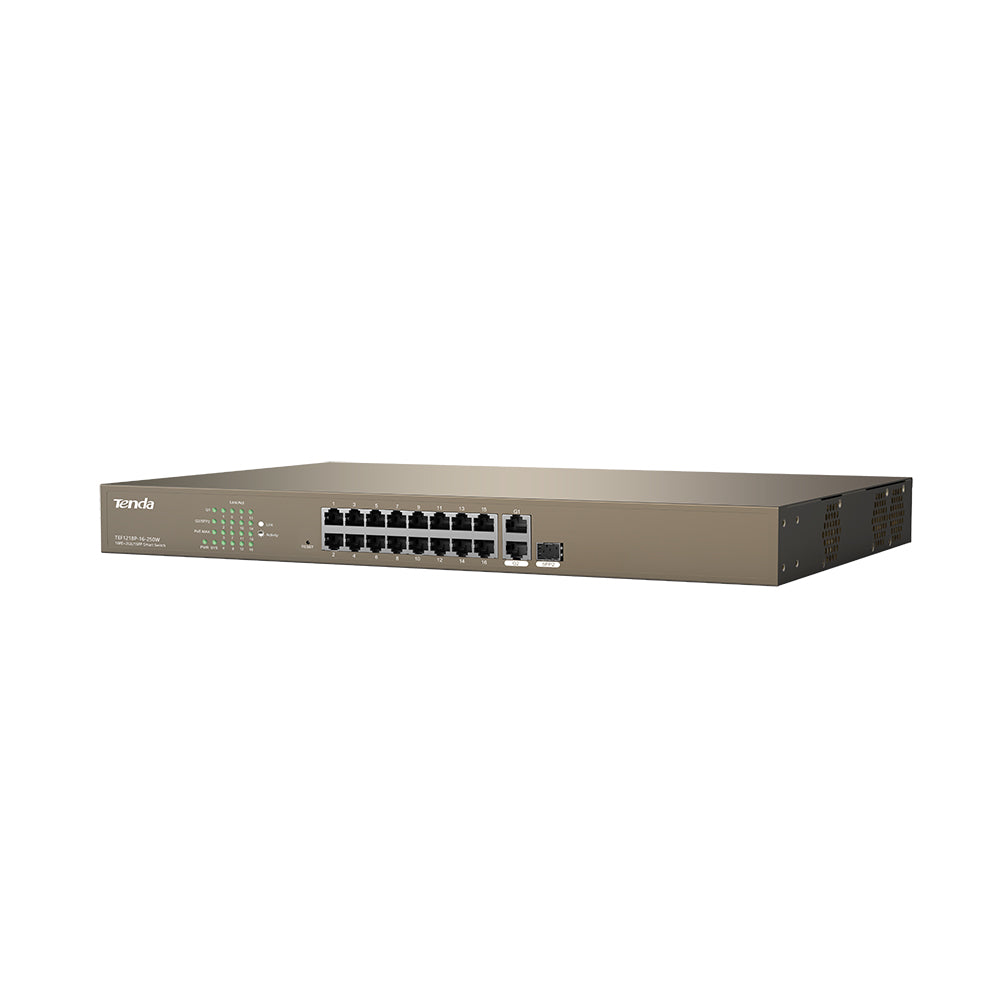

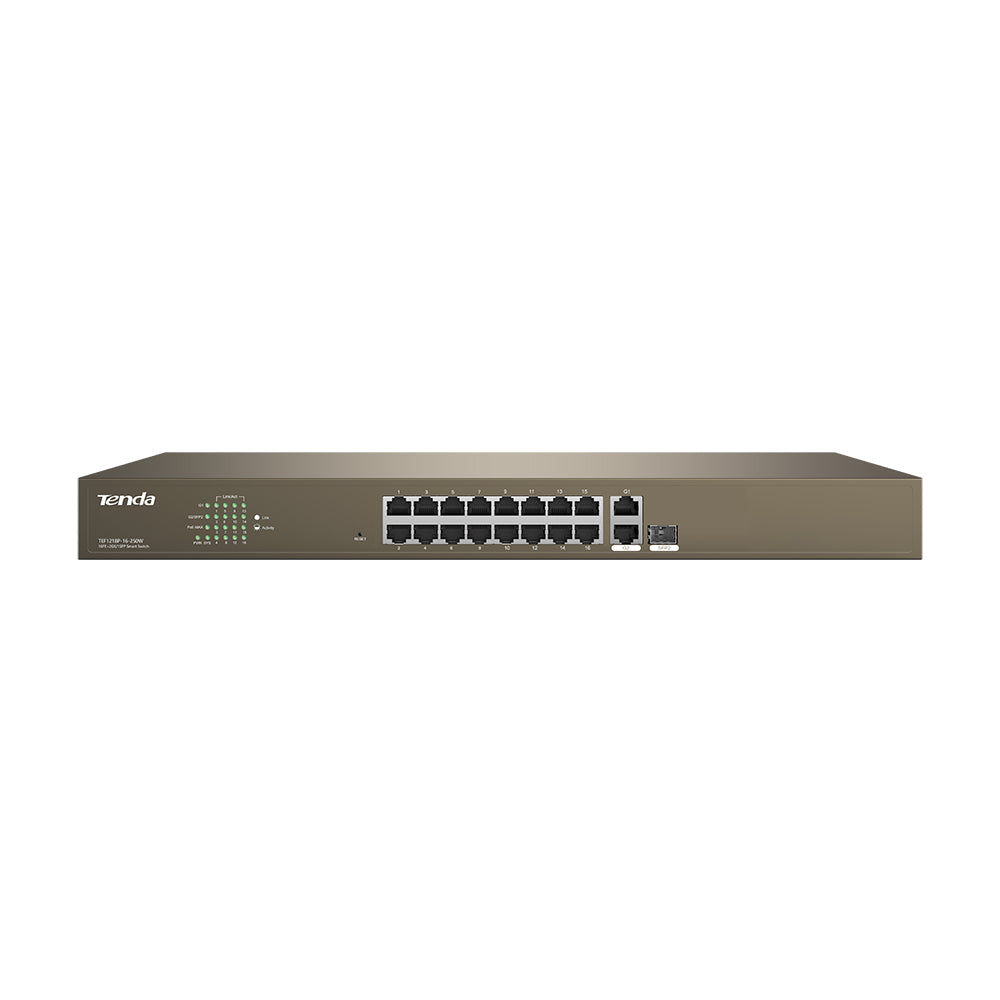

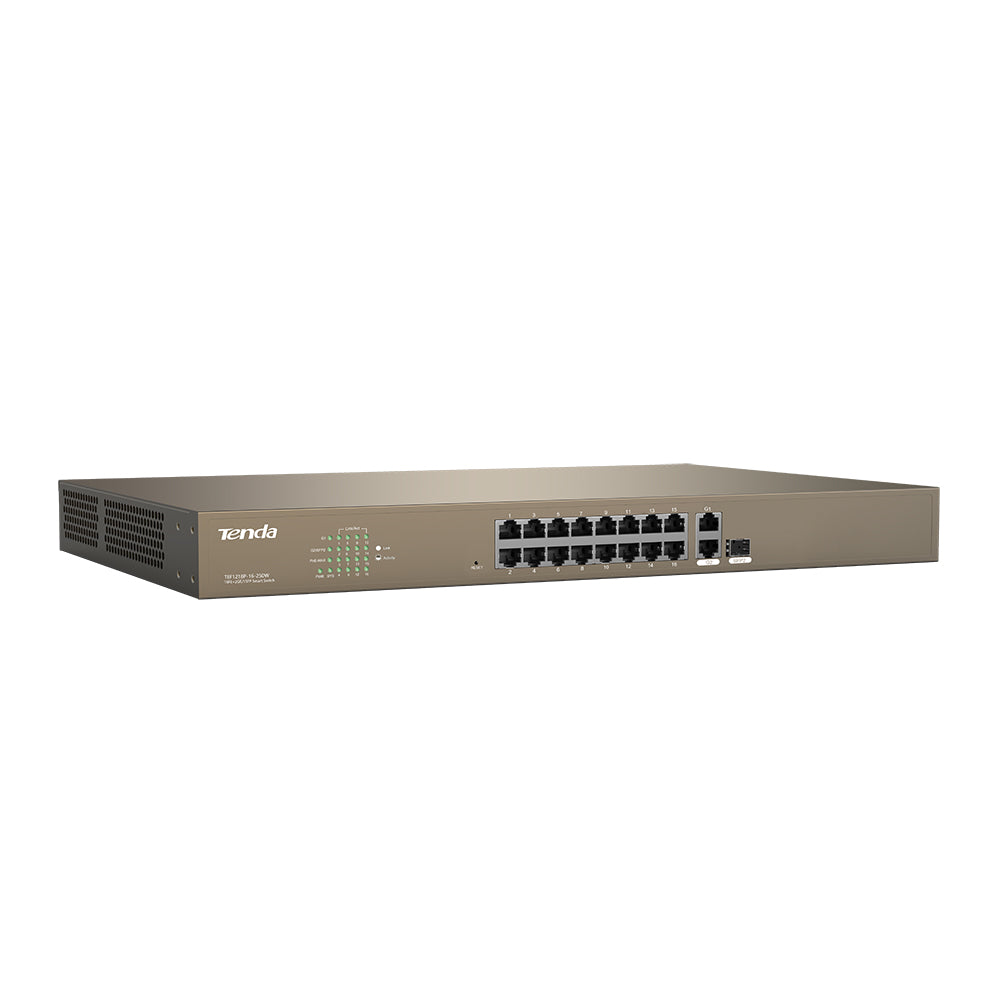

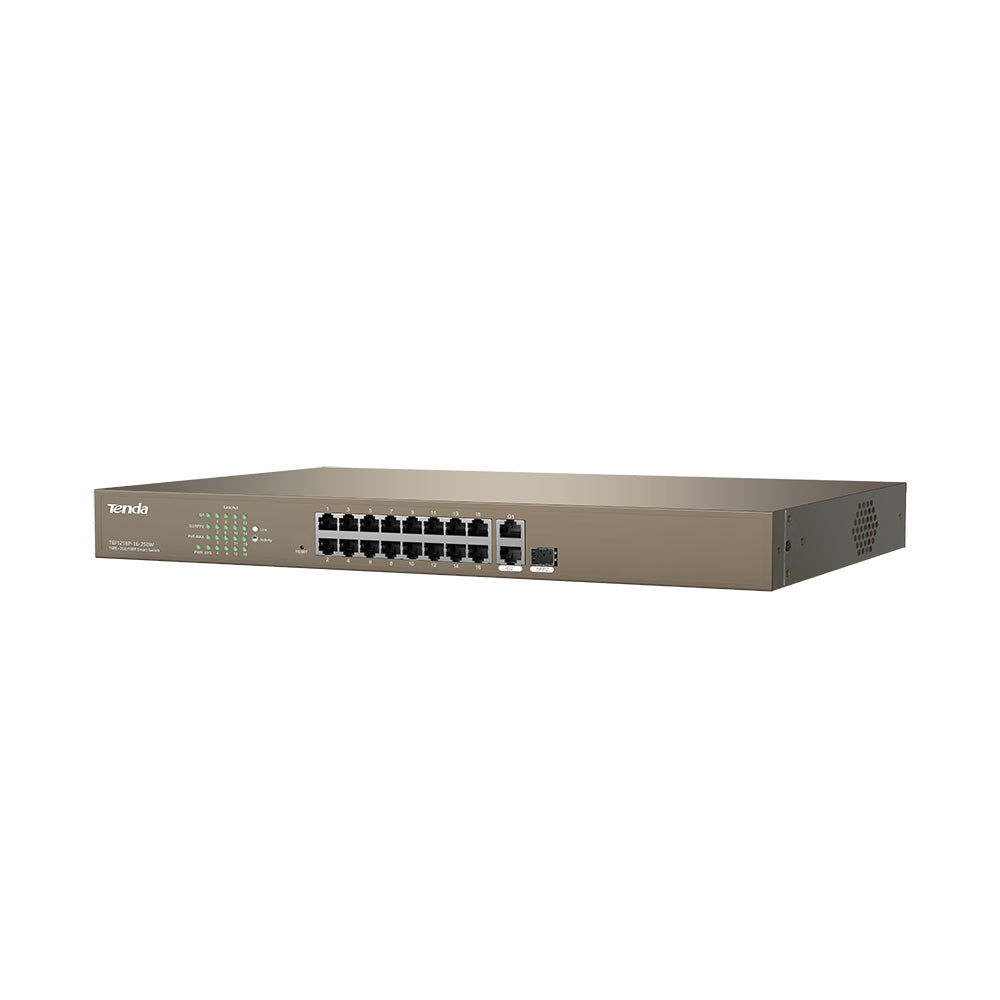

Tenda 16 Port 250W Gigabit Ethernet Network Switch with 16-Port PoE

Tenda TEF1218P-16-250W Smart PoE Switch – 16-Port PoE+ with Gigabit Uplink & Web Management

Description

The Tenda TEF1218P-16-250W is a high-performance 16-port Smart PoE+ switch designed for seamless networking of IP cameras, APs, and IP phones. With a total PoE power output of 230W and a long-distance power supply of up to 250m, this switch ensures stable data transmission and efficient power delivery. Featuring Gigabit uplink ports, 6kV lightning protection, smart web management, and advanced VLAN & QoS functions, it provides a reliable, secure, and cost-effective solution for enterprise, surveillance, and wireless networking needs.

Key Features:

✔ 16-Port PoE+ with 230W Power Budget – Supports IEEE 802.3af/at, 30W per port, ideal for powering IP cameras, wireless APs, and VoIP phones.
✔ Long-Distance PoE Power Supply – Extends up to 250m for flexible deployment in large areas.
✔ Gigabit Uplink Ports – 2× Gigabit RJ45 ports + 1× Gigabit SFP port for high-speed data transmission and expansion.
✔ Smart Web Management – Supports VLAN, QoS, Link Aggregation, MAC Binding, and PoE scheduling for network optimization.
✔ Advanced Security – MAC-Port Binding, IGMP Snooping, and Port Mirroring for network stability.
✔ 6kV Lightning Protection – Protects devices from surges and ensures uninterrupted operation.
✔ Rack-Mount Design – Standard 1U 19-inch metal casing for professional installation.
✔ Energy-Efficient & Durable – Intelligent power management with over-temperature and PoE overload protection.

Specifications:

Model: TEF1218P-16-250W
PoE Ports: 16 × 10/100 Mbps RJ45 (IEEE 802.3af/at, 30W max per port, total 230W)
Uplink Ports: 2 × 10/100/1000 Mbps RJ45 + 1 × 10/100/1000 Mbps SFP combo port
Switching Capacity: 7.2 Gbps
MAC Address Table: 4K
PoE Distance: Up to 250m
Lightning Protection: 6kV
Power Supply: AC 100-240V, 50/60Hz
Power Consumption: 250W max
Dimensions: 440 × 178.8 × 44mm
Operating Temperature: 0℃ to 45℃ (32℉ to 113℉)
Management: Web-based GUI, SNMP v1/v2, VLAN, QoS, STP, IGMP Snooping
Certifications: CCC, FCC, CE, RoHS
